IKOtile SHINGLE

IKOtile SHINGLE is the unique alternative to traditional shingle and slate.

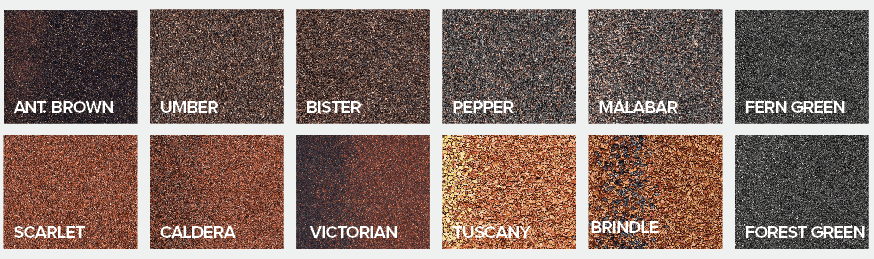

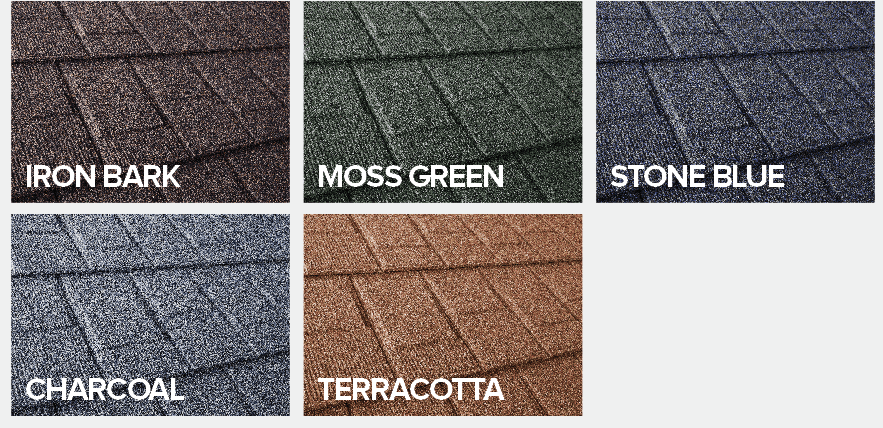

The IKOtile SHINGLE coated steel tiles imitate the look of traditional flat asphalt shingles, but in lightweight, low-maintenance, long-life steel. They are available in different subtle duotone shades. These tiles are designed for use on roofs as well as vertical walls.

It is now possible to achieve a distinctive look without all the problems inherent in traditional asphalt shingles such as delaminating, lifting and general UV damage.

SPECIFICATIONS:

	^{in METRICS}	^{in IMPERIALS}
Minimum pitch	16°	3.5/12
Maximum pitch	90°	vertical
Size – overall*	1345 x 295 mm	52.95″ x 11.61″
Size – cover*	1245 x 250 mm	48.98″ x 9.84″
Gauge of steel**	0,45 mm	26 gauge
Linear cover width*	1245 mm	48.98″
Cover*	3,22 pc/m²	29.87 pc/square
Cover of a panel*	0,31 m²	3.35 ft²
Weight per panel*	2,21 kg	4.88 lb
